Kubernetes Crash Course for Absolute Beginners

https://youtu.be/s_o8dwzRlu4?si=CoH7vsAVjInQCJaG

Official Definition

  • Kubernetes is an open-source container orchestration tool that was developed by Google.
  • It helps manage containerized applications in different deployment environments.

Problems Kubernetes Solves

  • Trend from monolith (1 app running on 1 VM or 1 computer/machine) to microservices
  • Increased usage of containers

Features of Kubernetes

  • High availability or no downtime
  • Scalability for high performance
  • Disaster recovery - backup and restore

Kubernetes Architecture

  • Node - virtual or physical machine
  • Master Node/Control plane and worker nodes
  • Worker nodes are where the work is actually happening
  • Master Node runs important Kubernetes processes
  • API Server - the entry point to the k8s cluster
  • Controller manager - keeps track of what is happening in the cluster
  • Scheduler - ensures Pods placement
  • etcd - configuration data, status, etc. of each node and container
  • Virtual network - spans all nodes that are part of the cluster
  • Master node typically has lower/fewer resources because it is not running workloads

Main Kubernetes Components

  • Node and Pod
  • Node is virtual or physical machine, and Pod is the smallest possible unit in Kubernetes that runs a container
  • You only interact with the Kubernetes layer, not the containers directly
  • Usually 1 application per pod, but helper pods can be run in the same pod as a primary app/container
  • Each Pod gets its own IP address, and that IP address can change if a Pod fails or is deleted and re-deployed
  • Service & Ingress
  • Service has a permanent/static IP address attached to each Pod
  • Service IP stays the same even if Pods are deleted and re-provisioned
  • Ingress takes requests and forwards to the appropriate service
  • ConfigMap & Secret
  • ConfigMap is an external configuration of your application
  • Secret is also an external configuration of the application, but is used to store secret data (usernames, passwords, API keys, certificates, etc.) in base64-encoded format, but encryption by a 3rd party tool is expected as well and not included in Kubernetes
  • Volume
  • Attaches physical storage to your Pod so that the data stored within the Pod/container is persistent and can survive restarts, deletes and re-deploys, etc.
  • Can be local, remote (NFS), or cloud-based

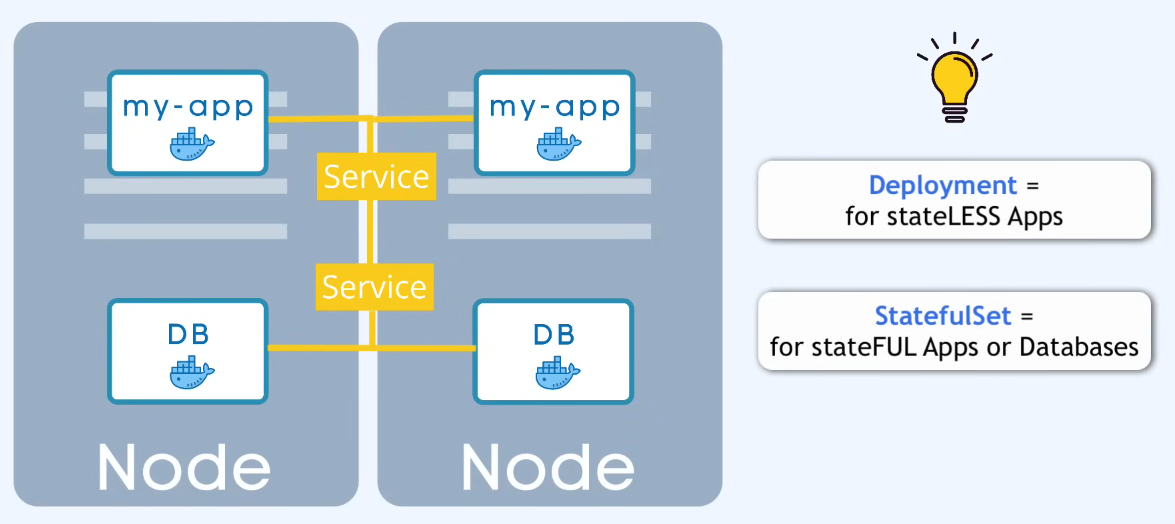

  • Deployment & StatefulSet
  • Deployment is a defined blueprint for Pods
    • Specify how many replicas you want to have
    • Abstraction of Pods - you manage deployments and not individual pods
    • If a pod goes down, the service can load balance and send requests to another one that is still up
    • DB pods cannot have their storage managed via deployments because they are stateful and require external storage and StatefulSet
    • For MySQL, Elastic DB/Elastic Search, Postgres, Mongo DB, etc. where only one pod can be writing to it at a time
    • StatefulSet deployments of DBs are not easy, which is why they are often hosted outside of the Kubernetes cluster

Kubernetes Configuration

  • Requests via CLI (kubectl), UI (web UI) or API all enter through the API server which runs on the Control Plane
  • This is the only entry point into the cluster
  • Attributes of spec are specific to the kind of object being created
  • Deployment and service are commonly found in the same config yaml file because every deployment will need a service and it makes sense to bundle them together instead of needing 2 separate config files.
